The Ultimate Tool for Graphite Processing: Shangshan Precision Machinery's Vertical Machining Center Empowers Graphite Bearing Manufacturing
In the precise world of mechanical operation, bearings, as the key supporting components for rotational movement, directly impact the operational efficiency and stability of the entire equipment. Graphite bearings, with their unique material properties, stand out in extreme environments such as high temperatures and corrosion, becoming an indispensable "industrial expert" in numerous industrial fields. To achieve high-quality manufacturing of graphite bearings, suitable processing equipment is crucial. Shangshan Precision Machinery's Vertical Machining Center is your ideal choice.
Graphite Bearings: The "Invisible Champion" in Extreme Environments
Unique Structure and Working Principle of Graphite Bearings

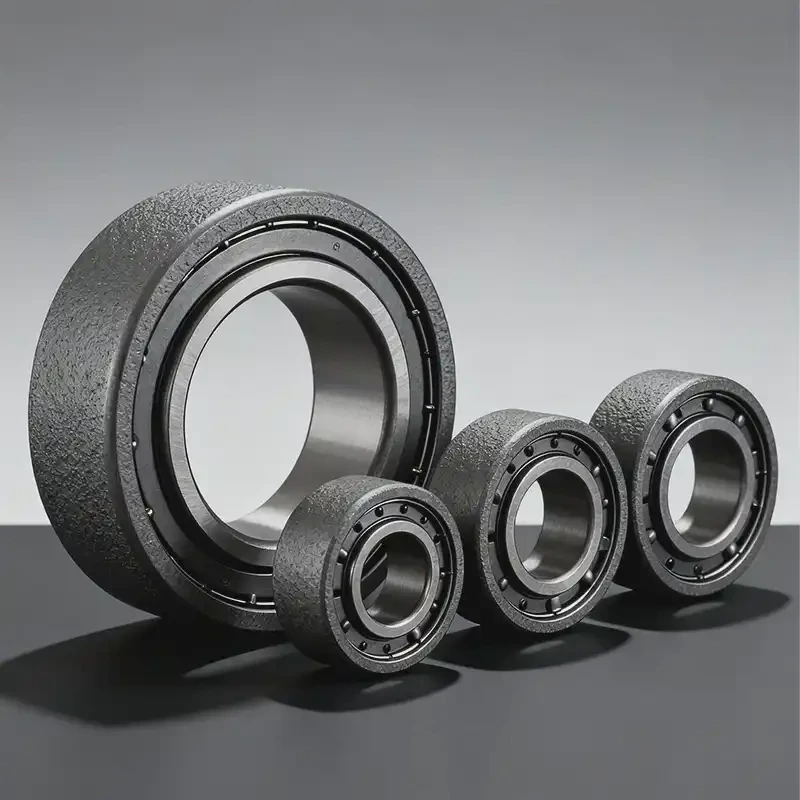

Graphite bearings are sliding bearings primarily made from natural flake graphite or artificial graphite, meticulously manufactured through processes like pressing and sintering. They belong to the category of solid lubricant bearings and are significantly different from traditional metal bearings. Their core structure consists of a graphite matrix and potentially added filler materials (such as metals, ceramics, etc.). This unique structure allows graphite bearings to operate normally without the need for additional lubricating oil.
The layered structure of graphite is key to its self-lubricating function. Weak van der Waals forces exist between carbon atoms in the layered structure. When the bearing starts operating, relative sliding occurs between the graphite layers, forming a self-lubricating film. This film effectively reduces friction, allowing the graphite bearing to maintain stable operation even in oil-free environments, significantly lowering maintenance costs and failure risks during equipment operation.
Four Core Advantages, Forging Exceptional Performance
King of High-Temperature Resistance: Graphite has an extremely high melting point, up to 3650°C, and can maintain stable performance across an extreme temperature range from -200°C to 2000°C. Taking the continuous caster oscillation device in the metallurgical industry as an example, graphite bearings can withstand the impact of molten steel above 1000°C, ensuring continuous and stable operation of the equipment in high-temperature environments, providing powerful support for efficient steel production.
Self-Lubrication Expert: Without relying on an external lubrication system, graphite itself can form a lubricating film. This characteristic offers significant advantages in food processing equipment, avoiding oil contamination of food and ensuring food safety and hygiene. Simultaneously, it reduces equipment maintenance frequency and costs, improving production efficiency.
Anti-Corrosion Guardian: Graphite has a natural resistance to chemicals such as acids, alkalis, and salts. In chemical pumps, the service life of graphite bearings is 3-5 times that of metal bearings. This allows chemical equipment to maintain good operating condition even when exposed to corrosive media for extended periods, reducing the frequency and cost of equipment replacement and improving the economic efficiency of chemical production.
Lightweight Contender: The density of graphite is only 1/4 that of steel. This characteristic offers significant advantages in the aerospace field. For example, after a certain satellite's solar panel drive mechanism adopted graphite bearings, the weight was reduced by 40%, effectively lowering satellite launch costs and improving the satellite's payload capacity and operational efficiency.
Five Application Scenarios, Widely Covering Industrial Fields
High-Temperature Industries: In high-temperature equipment such as oscillation devices for continuous caster molds in steel smelting, glass furnace stirrers in glass manufacturing, and kiln rotating parts in ceramic firing, graphite bearings ensure normal equipment operation thanks to their excellent high-temperature resistance.
Chemical Field: Equipment related to the chemical industry, such as acid-base pumps, valves, anti-corrosion centrifuges, and seawater desalination equipment, often come into contact with various corrosive media, placing extremely high demands on the bearing's corrosion resistance. The natural anti-corrosion characteristics of graphite bearings make them the ideal choice for this equipment, effectively extending service life and reducing maintenance costs.
Food and Pharmaceutical: In production equipment for food and pharmaceuticals, such as chocolate transfer pumps, pharmaceutical mixers, and aseptic packaging equipment, the self-lubricating characteristics of graphite bearings avoid oil contamination, ensuring product quality and safety. Furthermore, their low maintenance cost aligns with the industry's requirements for production efficiency and cost control.
Clean Energy: Clean energy equipment like wind turbine yaw systems, nuclear power plant cooling pumps, and solar tracking devices have extremely high requirements for bearing reliability and stability. Graphite bearings, with their unique performance advantages, can operate stably in these devices, providing strong support for the development of clean energy.
Aerospace: Aerospace equipment, such as satellite attitude control systems, rocket engine fuel pumps, and deep-space detector joints, have extremely strict requirements for the weight and performance of components. The lightweight and high-performance characteristics of graphite bearings meet the needs of this equipment, contributing to the advancement of aerospace endeavors.
Shangshan Precision Machinery Vertical Machining Center: The Exclusive Tool for Graphite Bearing Manufacturing
Precise Matching, Meeting Graphite Processing Needs
The Shangshan Precision Machinery Vertical Machining Center is designed specifically for processing special materials like graphite. Its various parameters are highly aligned with the manufacturing requirements of graphite bearings.
Travel and Worktable: Both travel and worktable support customization. The worktable load capacity can reach up to 600Kg (varies by model), meeting the processing needs of graphite bearing parts of different specifications and providing ample space and stable support for large graphite bearing parts.
Spindle Performance: The distance from the spindle face to the worktable is adjustable between 130 - 530mm. The spindle speed range is 20,000 - 100,000 rpm, allowing flexible adjustment of spindle height and speed according to different processing requirements for efficient and precise machining.
Accuracy Assurance: Positioning accuracy reaches ±0.005/300mm, and repeat positioning accuracy is ±0.003/300mm, ensuring the machining accuracy of graphite bearing parts, meeting the manufacturing requirements for high-precision graphite bearings, and guaranteeing bearing stability and reliability during operation.
Efficient Machining: The tool magazine capacity is 24 tools, with a tool change time of only 2 seconds, significantly reducing tool change time during processing and improving efficiency. The rapid traverse rate is between 32 - 48 m/min, and the cutting feed rate is 10 - 20 m/min, enabling fast and efficient completion of graphite bearing part machining tasks.
Customized Services, Meeting Individual Needs
The Shangshan Precision Machinery Vertical Machining Center supports customized configurations. Parameters such as torque and drilling capacity can be tailored according to specific customer requirements. Whether you need to process special specification graphite bearing parts or have unique processing requirements, we can provide personalized solutions to meet your diverse needs.
Reliable Assurance, Giving You Peace of Mind
This machining center adopts a full closed-loop control method, ensuring stability and accuracy during the machining process. The structure is robust, capable of withstanding high-intensity machining loads. Simultaneously, a one-year whole machine warranty is provided, giving you peace of mind during purchase and use.
Wide Application, Assisting Development in Multiple Fields
The Shangshan Precision Machinery Vertical Machining Center is not only suitable for graphite processing but can also be used for carbon fiber processing, ceramic processing, composite material processing, and other fields. Its wide applicability allows it to meet the needs of different industries for processing special materials, providing powerful equipment support for development across various sectors.
Selection and Maintenance: Ensuring Graphite Bearing Machining Quality
Selection Key Points
When selecting a Shangshan Precision Machinery Vertical Machining Center for graphite bearing processing, it is necessary to choose based on specific processing requirements.
Temperature Range: Ordinary graphite bearings are suitable for environments from -200°C to 400°C, while high-purity graphite can extend this range to 2000°C. If the processed graphite bearings are intended for use in high-temperature environments, it is necessary to select processing equipment and processes that can adapt to the corresponding temperature range.
Load Capacity: Filling with metals (like copper) can enhance the load-bearing capacity of graphite bearings but reduces their corrosion resistance. During selection, based on the load requirements and usage environment of the graphite bearing, choose the filler material and processing technology reasonably to ensure bearing performance.
Speed Limitation: It is recommended that the linear speed of graphite bearings does not exceed 50 m/s; special design is required for high-speed applications. During processing, adjust the machining parameters reasonably according to the designed speed requirements of the bearing to avoid damage caused by excessive speed.
Environmental Matching: In strongly oxidizing environments (like concentrated nitric acid), graphite bearing models that have undergone anti-oxidation treatment need to be selected. Similarly, during processing, based on the characteristics of the usage environment, select appropriate processing technology and protective measures to ensure bearing quality and performance.
Maintenance Considerations
Although graphite bearing maintenance is relatively simple, the following points still need attention when using the Shangshan Precision Machinery Vertical Machining Center for processing:
Avoid Sudden Impact Loads: During processing and installation, avoid applying sudden impact loads to graphite bearings to prevent damage.
Regularly Check Running Smoothness: Regularly check the running smoothness of the processing equipment, ensure the normal operation of components like the spindle and tools, identify and resolve potential issues promptly to guarantee machining quality.
Prevent Foreign Objects from Entering the Friction Surface: During processing, take effective protective measures to prevent foreign objects from entering the friction surface of the graphite bearing, avoiding impacts on lubrication performance and running accuracy.
Pre-Use Treatment for Long-Term Storage: If the equipment is to be stored long-term, clean and dry the graphite bearings before storage, and store them properly to prevent rust and damage.
The Shangshan Precision Machinery Vertical Machining Center, with its precise parameter matching, customized services, reliable assurance, and wide applicability, becomes the ideal choice for graphite bearing manufacturing. Choosing the Shangshan Precision Machinery Vertical Machining Center means choosing an efficient, precise, and reliable solution for graphite bearing processing. It injects powerful momentum into your industrial production, helping you stand out in the fierce market competition.
